單相兩線制電源濾波器

進出端開蓋式單相、三相、直流

● 進出線均可在打開的屏蔽腔體內接線，
● 應用：暗室、屏蔽房、電子方艙等

0519-83435607

立即咨詢

產品詳情

特點 Features

● 金屬殼體采用特殊的不銹鋼材質，機械強度高，耐腐蝕性強。

The metal shell is made of special stainless steel with high mechanical strength and strong corrosion resistance.

● 獨特的接線結構設計，進線和出線可分別在打開的屏蔽腔體內接線，方便又安全。

Unique wiring structure design, the incoming line and outgoing line can be connected in the open shielding cavity respectively, which is convenient and safe.

● 單相兩線、三相四線制、直流兩線/三線電源濾波器。

Single phase two wire, three-phase four wire, DC two wire / three wire power filter.

● 體積緊湊，壓降低，漏電流小。Compact size, low voltage and low leakage current.

應用 Application

● 電波暗室、屏蔽房、電子方艙和機柜等設施的專用配套，能有效的抑制輻射干擾。

The special supporting facilities of anechoic chamber, shielding room, electronic shelter and cabinet can effectively suppress radiation interference.

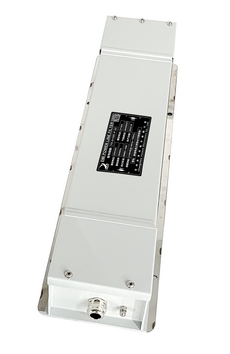

-11全螺栓式開蓋單相兩線制電源濾波器 -22壓板式開蓋三相四線制電源濾波器

性能指標 Characteristcs

額定電壓Rated voltage	單相Single phase 250VAC（線-線/線-地）	三相three-phase 440/250VAC（線-線/線-地）
工作頻率 Operating Frequency	50/60HZ
耐壓試驗 Test Voltage	1000VDC/2S（線-線Line - line） 1000VDC/2S（線-地Line - ground） 3000VDC/2S
電壓降△V Voltage drop	<1V（額定工作條件Rated working conditions）
氣候類別 Climate category	25/070/21

單相產品型號表 Filter Table 注：零地電壓為0V Note: N-G voltage is 0V

型號 model	額定電流A Rated curren	MAX泄漏電流A leakage current	波導螺桿 Waveguide screw	接線螺桿 Connecting screw	外形尺寸Fig. Outline Drawing	插入損耗dB insertion loss
YX-2×10C-F-11/22	10	0.2	M24	M6	1	100dB 14K~10GHz 備注：可拓展至40GHz remarks: It can be extended to 40GHz
YX-2×16C-F-11/22	16	0.2	M24	M6	1
YX-2×32C-F-11/22	32	0.2	M24	M6	1
YX-2×50C-F-11/22	50	0.2	M24	M6	1
YX-2×60C-F-11/22	60	0.2	M33	M6	2
YX-2×80C-F-11/22	80	0.2	M33	M8	3
YX-2×100C-F-11/22	100	0.2	M33	M8	3
YX-2×150C-F-11/22	150	0.2	M42	M8	4
YX-2×200C-F-11/22	200	0.2	M42	M12	5

型號

model

額定電流A

Rated curren

MAX泄漏電流A

leakage current

波導螺桿

Waveguide screw

接線螺桿

Connecting screw

外形尺寸Fig.

Outline Drawing

插入損耗dB

insertion loss

YX-2×400C-F-11/22

400

0.2

法蘭盤Flange plate

M12

100dB
14K~10GHz

YX-2×500C-F-11/22

500

0.2

法蘭盤Flange plate

M12

三相產品型號表 Filter Table 注：零地電壓為0V Note: N-G voltage is 0V

型號 model	額定電流A Rated curren	MAX泄漏電流A leakage current	波導螺桿 Waveguide screw	接線螺桿 Connecting screw	外形尺寸Fig. Outline Drawing	插入損耗dB insertion loss
YX-4×10C-F-11/22	10	0.2	M33	M6	6	100dB 14K~10GHz 備注：可拓展至40GHz remarks: It can be extended to 40GHz
YX-4×16C-F-11/22	16	0.2	M33	M6	6
YX-4×32C-F-11/22	32	0.2	M33	M6	6
YX-4×50C-F-11/22	50	0.2	M33	M6	6
YX-4×65C-F-11/22	65	0.2	M33	M6	6
YX-4×80C-F-11/22	80	0.2	M42	M8	7
YX-4×100C-F-11/22	100	0.2	M42	M8	7
YX-4×150C-F-11/22	150	0.2	M42	M8	7
YX-4×200C-F-11/22	200	0.2	M48	M12	8
YX-4x400C-F-11/22	400	0.2	法蘭盤Flange plate	M12	10
YX-4x500C-F-11/22	500	0.2	法蘭盤Flange plate	M12	10

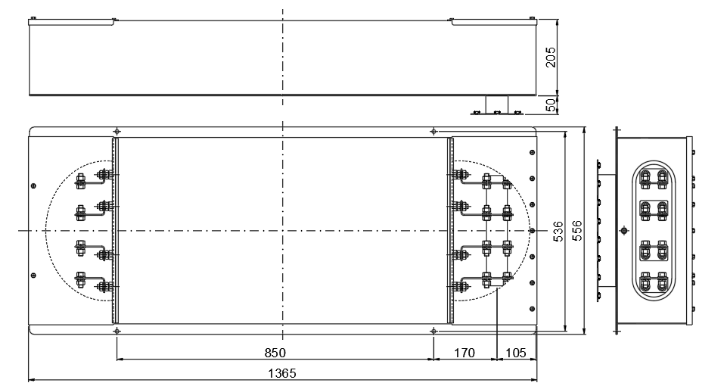

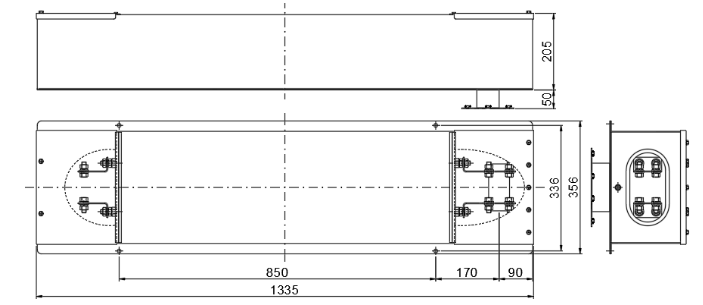

外形尺寸圖 Outline Drawing : mm

Fig.1~Fig.5Fig.6~Fig.8

外形尺寸Fig.	A	B	C	D	E	F	G	H	I	J
1	750	165	120	M24	80	45	188	205	225	M6
2	750	165	120	M33	80	45	188	205	225	M6
3	760	160	120	M33	60	45	183	200	210	M8
4	760	160	120	M42	60	45	183	200	210	M8
5	880	200	150	M42	70	65	223	240	270	M12
6	960	280	140	M42	70	65	303	320	310	M6
7	960	280	140	M42	70	65	303	320	310	M8
8	960	320	150	M48	70	65	343	360	310	M12
